Applying the Implementations of the Dashboard Listener API

The Dashboard Listener API defines the start and end events of adding and deleting library components. You can get dashboard related information at the event and use the information in your applications. This topic describes the Dashboard Listener API and how you can apply its implementation on the Server Console or via URL.

Event types

The start action of adding a library component
The end action of adding a library component
The start action of deleting a library component
The end action of deleting a library component

Basic information

Catalog information
Dashboard information
Library component information

For more information, see the com.jinfonet.web.modules.dashboard package in the Logi Report Javadoc. You can also refer to the sample implementation file DashboardListenerDemo.java in <install_root>\help\samples\APIDashboardListener for additional information.

Applying the Dashboard Listener API

Different uses should have different implementations of the Dashboard Listener API. Administrators can manage the implementations on the Server Console. After you import a new implementation to the server and enable it, it will be able to take effect immediately without restarting the server.

In addition, after uploading an implementation to Server, you can apply it in the URL for running dashboards. The URL way has higher priority than the enabled implementation on the Server Console.

To import and enable an implementation in the Server Console:

On the system toolbar of the Server Console, navigate to Administration > Other > Dashboard Listeners. Server displays the Dashboard Listeners page.

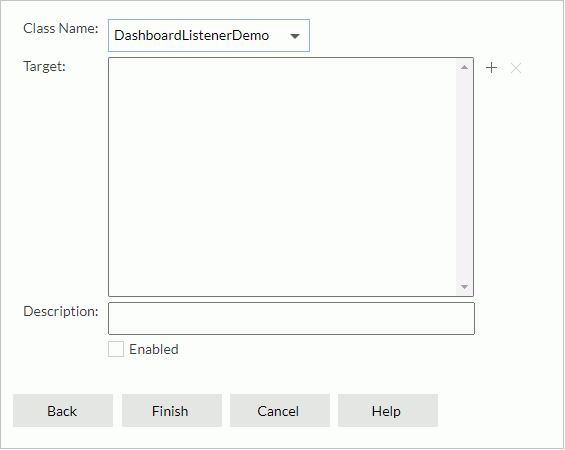

Select New Dashboard Listener. Server displays the New Dashboard Listener dialog box.
Select Browse to locate the implementation file which could be a zip or a jar file.
Select Next.
From the Class Name list, choose a class name which you defined in the implementation file.

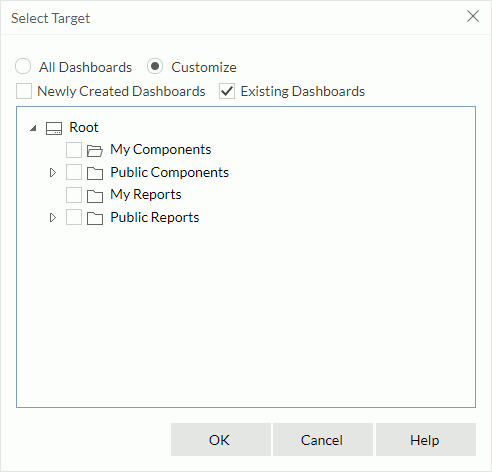

Select the Add button beside the Target box. Server displays the Select Target dialog box.
Specify the target dashboards you would like the implementation to apply to: all dashboards including the unsaved ones, the newly created dashboards that you have not saved, or dashboards in the specified folders.
Select OK. Server lists the specified dashboards or folders in the Target box.
When you have added all dashboards, Server disables the button. Later if you want to change the dashboards, you need to first delete the <All dashboards> item, and then add other dashboards. To remove unwanted dashboards from the Target box, select them and then select the Remove button .
In the Description text box, you can type a description for the implementation.
Select Enabled to enable the implementation.
Select Finish. The registered class will take effect right away.

Server adds the registered implementation class in the class table on the Dashboard Listener page which consists of the following columns.

Column Name	Description
Class Name	The implementation class name. Each is unique and cannot be null.
Target	The dashboards or folders that the implementation will take effect on. When a dashboard is the target value of different implementations, the earliest implementation will take effect on the dashboard.
Description	The description of the implementation.
Enabled	Server shows whether you have enabled the implementation.

In the class table, the system admin can perform the following actions on the implementations:

To sort the table by certain column, select the column name.
To modify the target value of an implementation, select it, then select Properties on the toolbar or right-click and then select Properties from the shortcut menu. Server displays a dialog box, and you can modify the target dashboards.
To enable implementations that are not enabled, select them, then select Enable on the toolbar or right-click and then select Enable from the shortcut menu.
To disable implementations that are enabled, select them, then select Disable on the toolbar or right-click and then select Disable from the shortcut menu.
To delete implementations, select them, then select Delete on the toolbar or right-click and then select Delete from the shortcut menu.

To apply an implementation via URL:

To apply the dashboard listener via URL, append the key-value pair jrd_dsh_listener=PackageName.ClassName in the URL for running dashboards.

For example, if you want your implemented class TestListener to take effect on a newly created dashboard (not the target you defined on the Server Console), you can define it in the URL. Such URL will not affect the setting on the Server Console.

http://localhost:8888/dashboard/app/entry/run.jsp?jrs.authorization=YWRtaW46YWRtaW4%3D&jrd_dsh_listener=com.jinfonet.TestListener&jrd_resext={"active":0,"reslst":[{"name":"/USERFOLDERPATH/admin/Dashboard 1.dsh","ver":-1}]}
